Kendall Plot

> library(mnormt)
> Wi <- function(n) {
+     fun <- function(w, i) {
+         w * (-log(w)) * ((w - w * log(w))^(i - 1)) * ((1 - w +
+             w * log(w))^(n - i))
+     }
+     out <- numeric(n)
+     for (i in 1:n) {
+         out[i] <- integrate(fun, lower = 0, upper = 1, i = i,
+             subdivisions = 10000, rel.tol = .Machine$double.eps^0.001)$value
+         out[i] <- out[i] * n * choose(n - 1, i - 1)
+     }
+     out
+ }
> Hi <- function(z) {
+     n <- dim(z)[1]
+     x <- array(z[, 1])
+     y <- array(z[, 2])
+     Hi.temp <- apply(z, 1, function(temp) length(which(x[which(x !=
+         temp[1])] <= temp[1] & y[which(y != temp[2])] <= temp[2]))/(n -
+         1))
+     return(as.matrix(Hi.temp))
+ }
> K.plot <- function(data, title = "") {
+     n <- nrow(data)
+     W <- Wi(n)
+     H <- sort(matrix(Hi(data)))
+     xrange <- c(0, 1)
+     yrange <- c(0, 1)
+     seq <- seq(from = 0.01, to = 1, by = 0.01)
+     plot(W, H, xlim = xrange, ylim = yrange, pch = 19, col = "red",
+         xlab = "Wi", ylab = "Hi", main = title)
+     lines(c(0, 1), c(0, 1), lty = 2, lwd = 2, col = "blue")
+     K0 <- seq - seq * log(seq)
+     lines(c(0, seq), c(0, K0), lty = 2, lwd = 2, col = "blue")
+ }

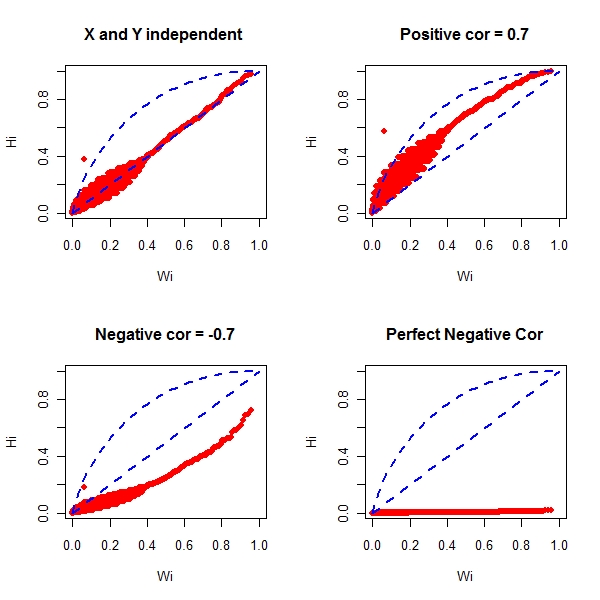

> par(mfrow = c(2, 2))
> ind.data <- cbind(runif(1000), runif(1000))
> K.plot(ind.data, "X and Y independent ")
> runs <- 1000
> sample.mean <- c(1, 2)
> sample.cov <- matrix(c(1, 0.7, 0.7, 1), ncol = 2)
> data <- rmnorm(runs, mean = sample.mean, varcov = sample.cov)
> K.plot(data, "Positive cor = 0.7")
> sample.cov <- matrix(c(1, -0.7, -0.7, 1), ncol = 2)
> data <- rmnorm(runs, mean = sample.mean, varcov = sample.cov)
> K.plot(data, "Negative cor = -0.7")
> sample.cov <- matrix(c(1, -0.9999, -0.9999, 1), ncol = 2)
> data <- rmnorm(runs, mean = sample.mean, varcov = sample.cov)
> K.plot(data, "Perfect Negative Cor")

> par(mfrow = c(1, 1))

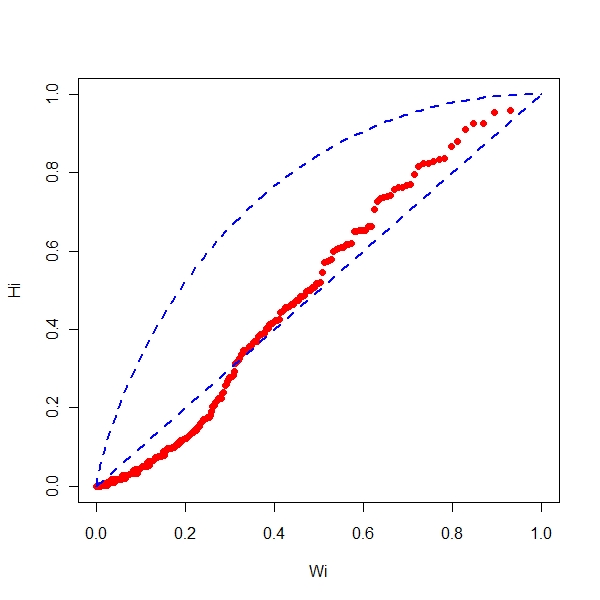

> data <- as.matrix(coredata(temp.ret[1200:1500, c(1, 2)]))
> K.plot(data)
